Shop Wintex 1000 Parts Here
To order or if you have any questions, please send a message here.

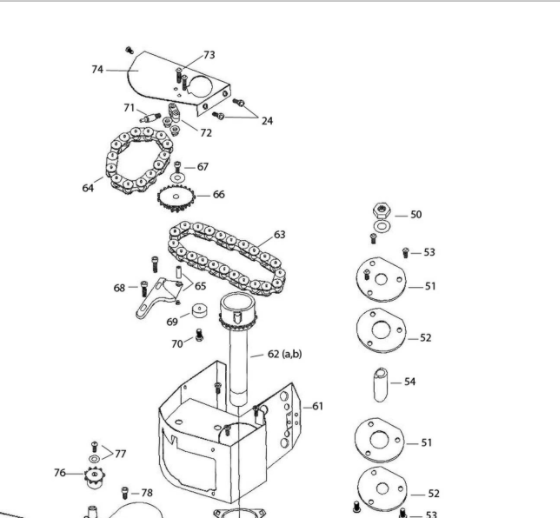

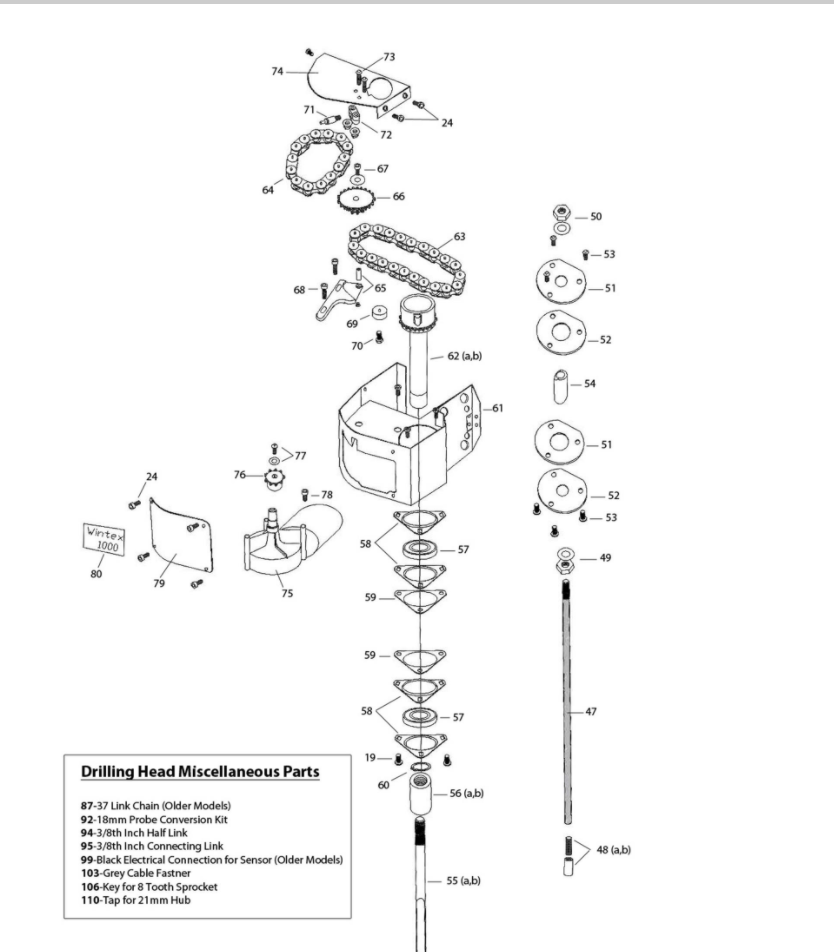

Wintex 1000 – Drilling Head Parts

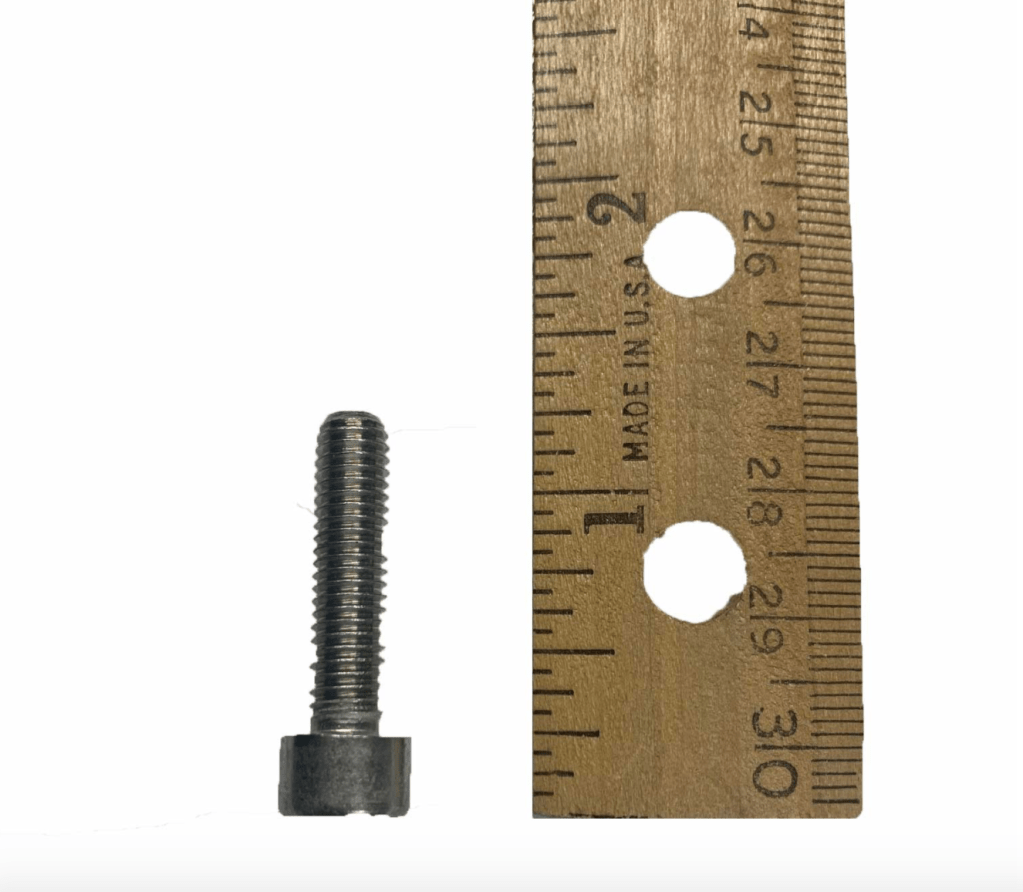

019- Bolts for Hub Bearing (8x20mm) | $0.75
024- Bolts for Drilling Head Covers (5x12mm) |$0.25
047-Ejector Rod | $54
048A/B- Ejector Tip | $18.75
049- Nut and Washer with Stop Screw for the Ejector Rod (12mm) | $6.25
050-Lock nut and Washer for Ejector Rod (12mm) | $1.00
051- Ejector Rod Plate without Threads | $7.25
052-Ejector Rod Plate with Threads | $8.25
053-Bolts for Ejector Rod Mounting Plate (6x16mm) | $0.25
054- Spacer for Ejector Rod | $9.25
055A/B- Soil Probe | $83.25
056A/B-Probe Lock Collar | $28
057-Hub Bearing | $10.50
058- Hub Bearing Clamps | $28.00
059- Hub Bearing Clamps with Threads | $17.75
060-Snap Ring for Hub | $2.00
061-Drilling Head | $232.00
062A/B-Probe Hub $179
063-39-Link Chain for Probe Rotation (2-Chain System) | $27
064-22-Link Chain for Probe Rotation (2-Chain System) $14.50
065-Mounting Plate for 8/16 Gearwheel $44.75
066-8/16 Gearwheel $55
067-Bolts and Washers for 8/16 Mounting Plate (6x25mm) $0.25
068-Bolts for Motor for Rotation (6x25mm) $0.50
069-Chain Tensioner (Drilling Head) $21.75
070-Bolts for Chain Tightener (8x25mm) $0.25
071-Drilling Head Sensor $83.25
072-Sensor Fitting for Drilling Head $5.25
073-Bolts and Nuts for Drilling Head Sensor (5x35mm) $0.25
074-Drilling Head Cover (Top) $41.50

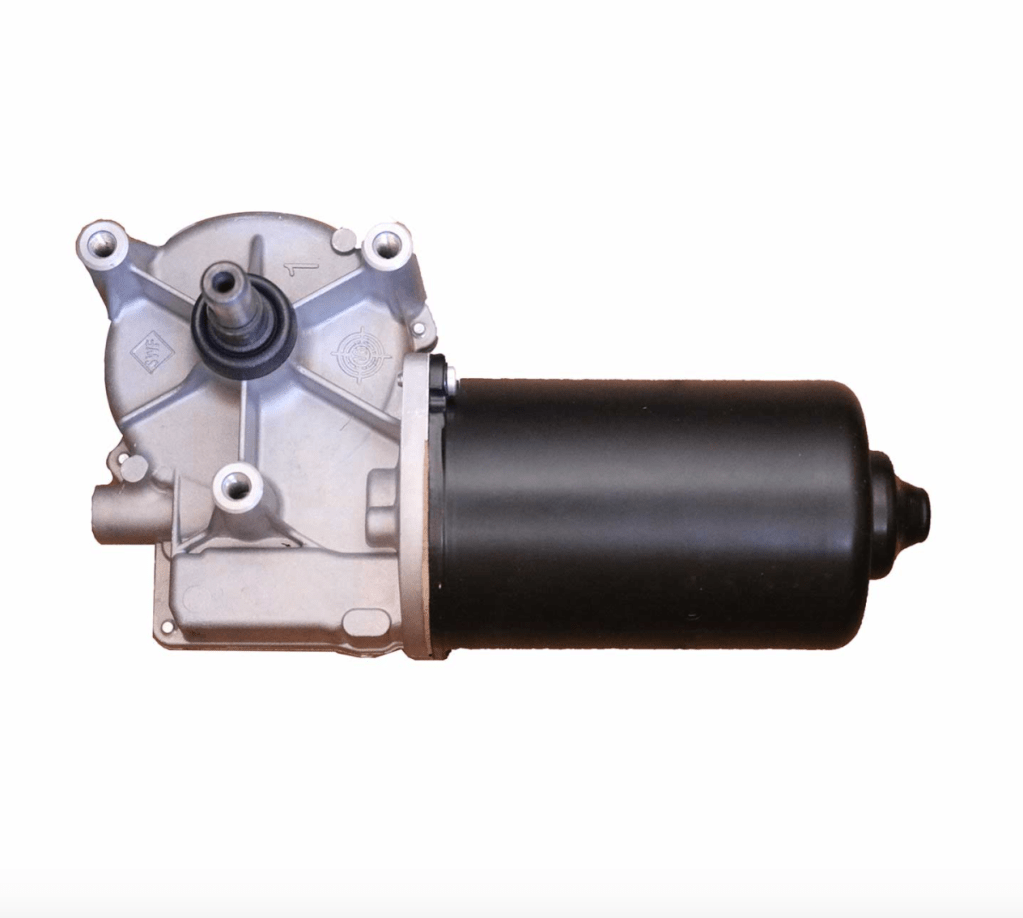

075-Motor for Rotation $294.25
076-8-Tooth Sprocket $26.00
077-Bolt and Washer for 8 Tooth Gearwheel $0.25
078-Bolts for Motor for Rotation (Short) $0.50
079-Drilling Head Cover (Front) $25
080- Wintex 1000 Label $4.25
087-37-Link Chain for Probe Rotation (1-Chain System) $24
092-18mm Probe Conversion Kit $208
094-Half Link for 3/8″ Chain $4.25
095-Connecting Link for 3/8″ Chain $3.00
099-Connection for Drilling Head Sensor (Older Models) $26.00
103-Cable Fastener (Grey) $23
106-Key for 8 tooth sprocket $2.00
110-Tap for 21mm Hub Threads $89.50

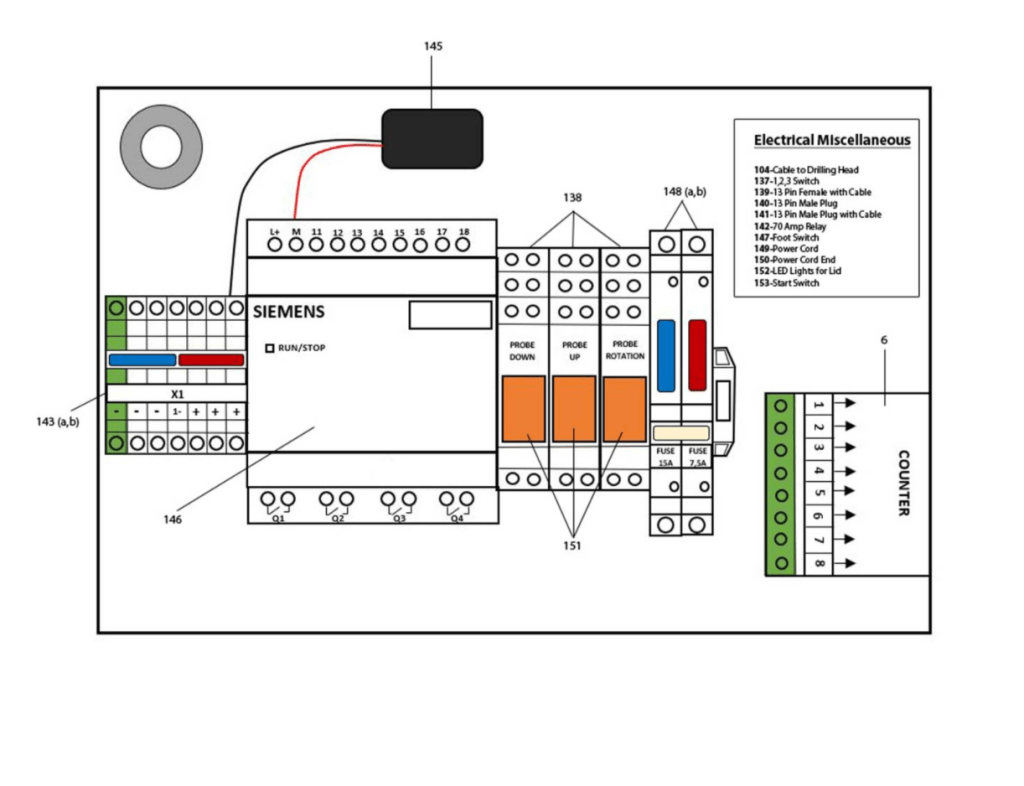

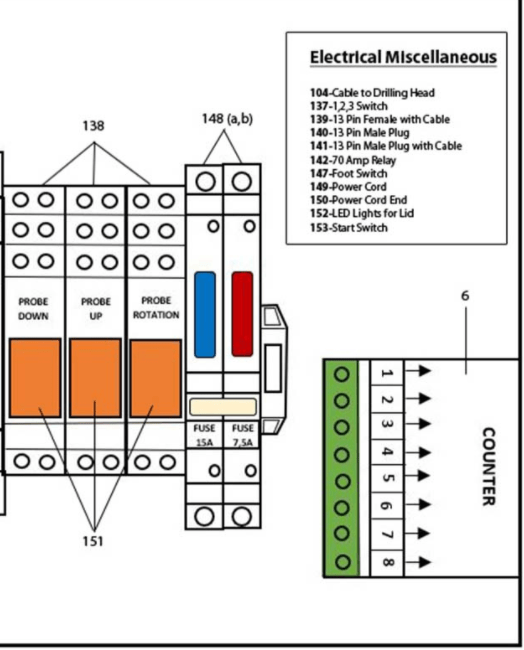

Wintex 1000 – Electrical
104-Cable to Drilling Head $70.75
137- 1-2-3 Switch $88.50
138-Grey Fitting for 16 AMP Relay (Orange) $10.50
139-13-Pin Female Plug with Cable $146.75
140-13-Pin Male Plug $47.75
141-13 Pin Male Plug with Cable $103.00
142-70 AMP Relay $47.75
143A/B-Terminal Block Connector $20.75
145-Capacitor for Computer $53
146-Computer $272
147-Foot Switch $147
148A/B-Fuse Container $28
149-Power Cord $59.25
150-Power Cord End $28
151-Relay 16 AMP (Orange) $26
152-LED Light for Grey Lid $6.25
153-Start Switch $56.25

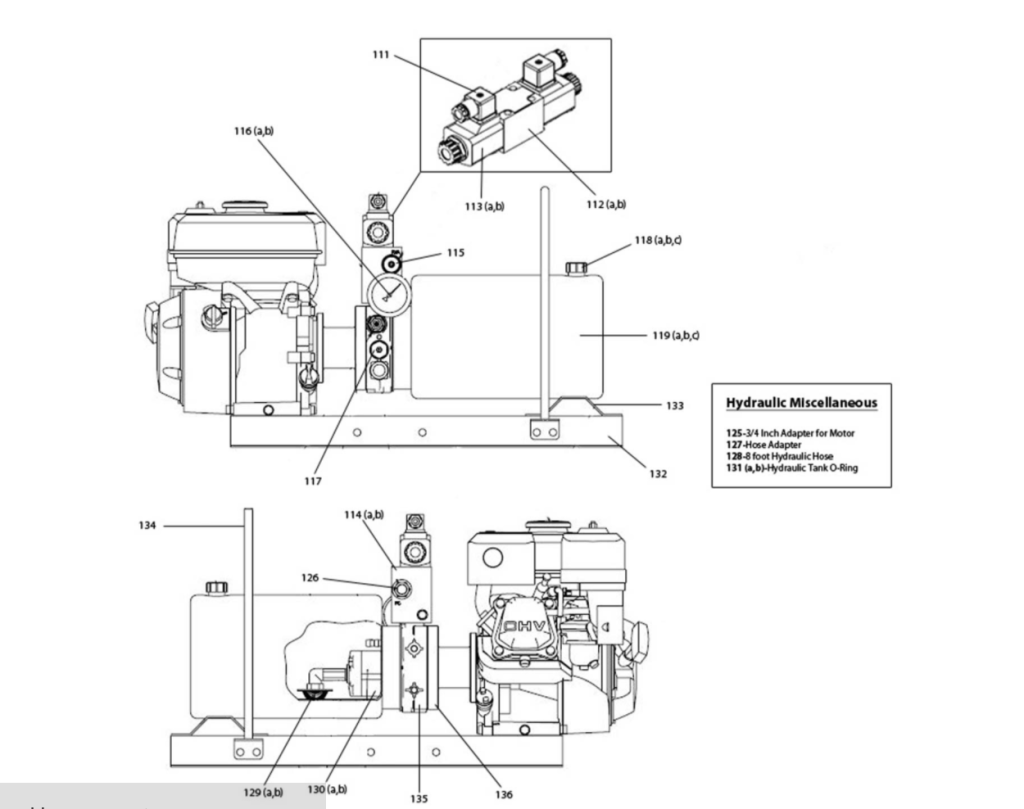

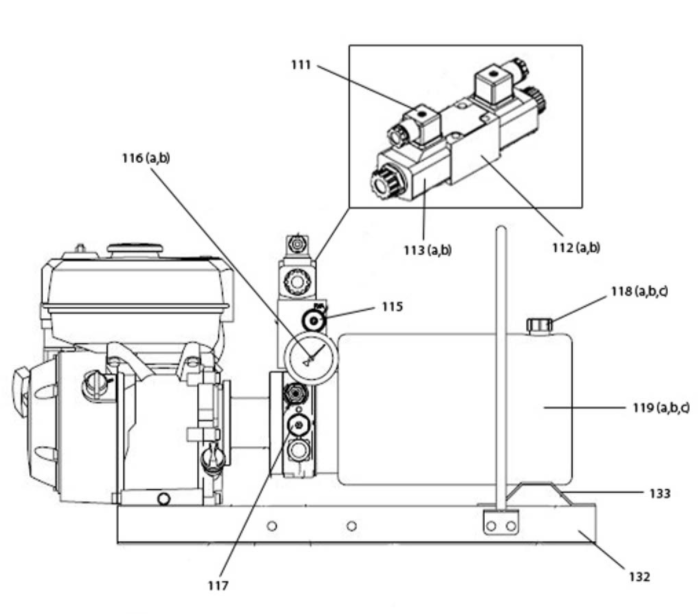

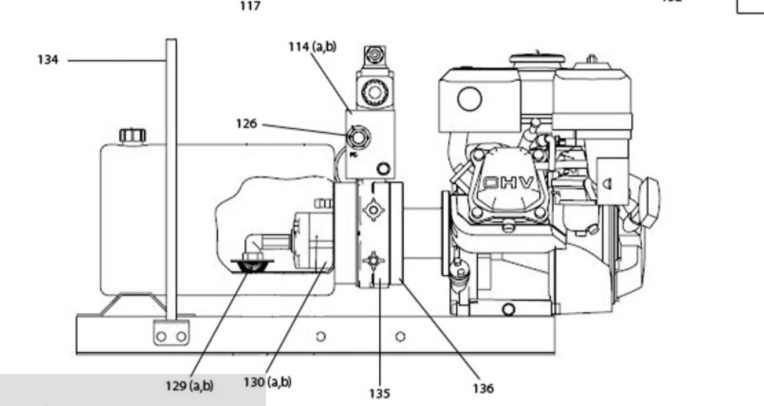

Wintex 1000 – Hydraulics
111-Solenoid Cap $21.75
112A/B-D03 Valve $90.50
113A/B-Solenoid $47.00
114A/B-Aluminum Valve Body $238.25
115-Relief Valve (Upper) $68.50
116A/B-Pressure Gauge $27
117-Relief Valve (Lower) $14.50
118A/B/C-Hydraulic Tank Cap $18.75
119A/B-Hydraulic Tank $55
125-3/4″ Adapter for Motor $101.00
126-Hydraulic Check Valve $42.75
127-Hose Adaptor $9.25
128-Hydraulic Hose 8 ft. $41.50
129A/B-Hydraulic Pump Filter Kit $7.25
130A/B-Hydraulic Pump $73.75
131A/B-Hydraulic Tank O-Ring $2.00
132-Mounting Plate for Hydraulic Unit $72.75
133-Spacer for the Hydraulic Tank $26.00
134-Handle for the Hydraulic Unit $84.25
135-Hydraulic Unit Center Block $124.75
136-Engine Adaptor Kit $124.75

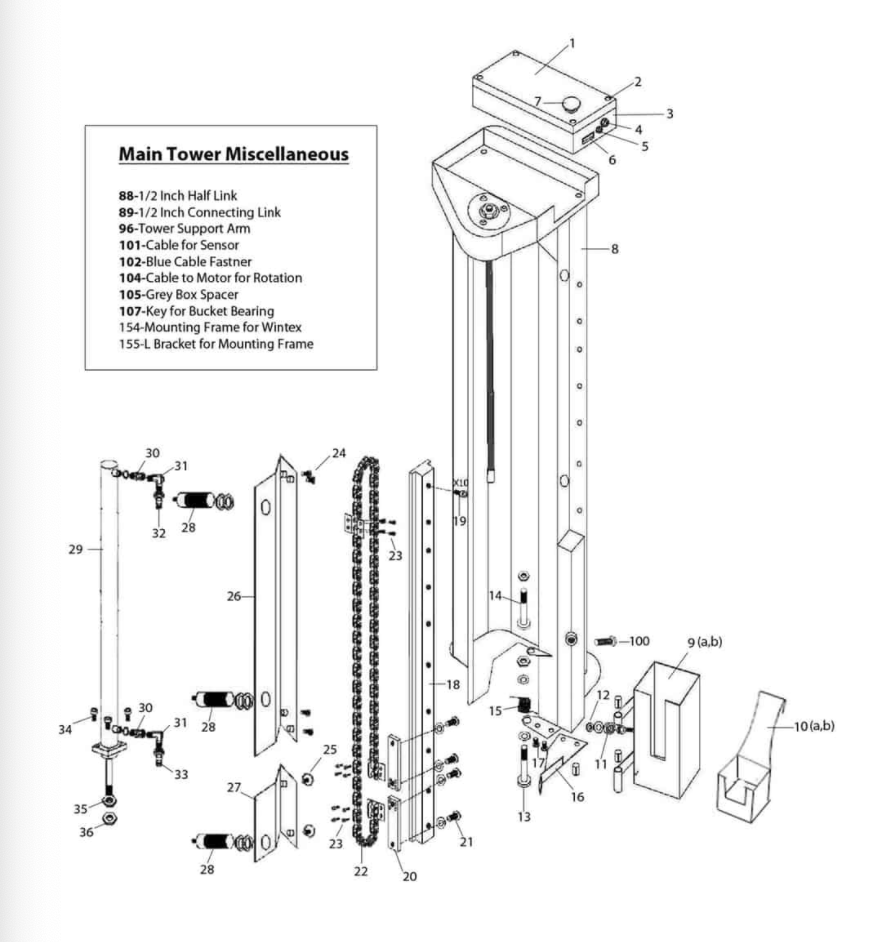

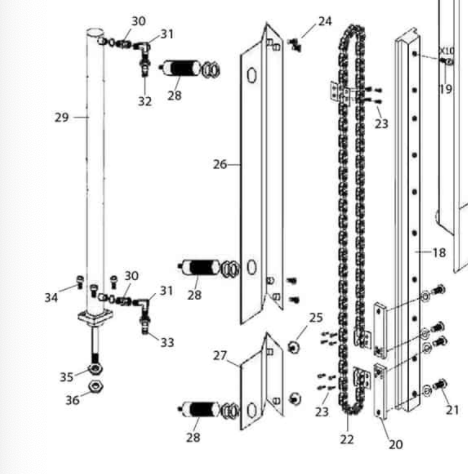

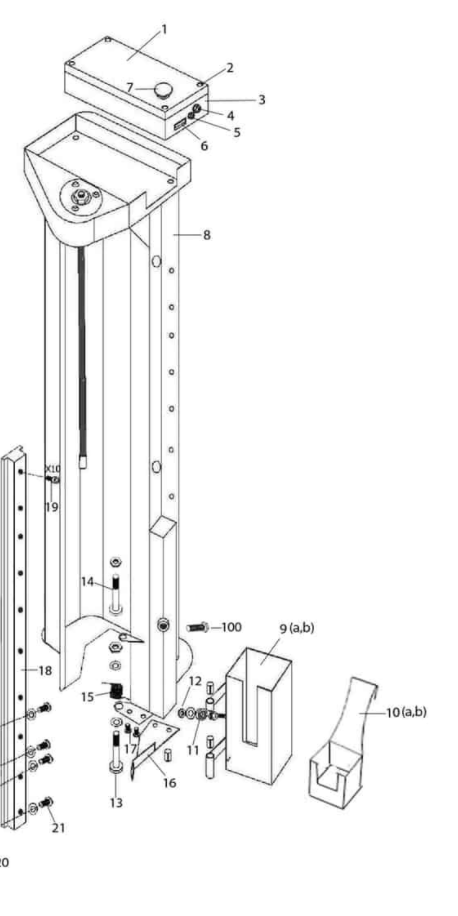

Wintex 1000 – Main Tower
Wintex 1000 Refurbish Kit $936.00
001-Lid for Electronic Box $64.50
002-Plastic Screw $2.00
003-Electronic Box (Bottom) $136.25
004-Grey Box Cable Fitting $7.25
005-Grey Box Power Cord Fitting $7.25
006-Cycle Counter $127.00
007-Emergency Stop $39.50
008-Yellow Cover $1,300.00
009A/B-Soil Box Container $246.50
010A/B-Soil Cup $91.50
011-Soil Box Bucket Bearing $17.75
012-Nut for Bucket Bearing $2.00
013-Bottom Bolt for Soil Container $6.25
014-Bolt for Top of Soil Container $6.25
015-Spring for Soil Box $16.75
016-Stop for Soil Box $13.50
017-Bolt for Stop for Soil Container (6x10mm) $0.25
018-Tower Rail (Longer) $133.00
019-Bolts for Rails (8x20mm) $0.75
020-Tower Attachment for Chain $21.75
021-Bolt and Washer for Chain Fittings $0.50
022-Main Guide Chain $ 139.25
023-Bolt for Chain (5x16mm) $0.25
024-Bolts for Drilling Head Covers (5x12mm) $0.25
025-Thumbscrew $4.25
026-Sensor Holder (Upper) $50.00
027-Sensor Holder (Lower) $44.75
028-Sensor $94.00
029-Piston $315
030-Piston Hydraulic Connection $7.25
031-90° Hydraulic Elbow $8.25
032-Male Quick Coupler $12.50
033-Female Quick Coupler $25.00
034-Bolt for Piston (6x25mm) $0.25
035-Flat Nut for Piston $2.00
036-Nut with Stop Screw for Piston (14mm) $10.50
088-Half Link for 1/2″ Chain $4.25
089-Connecting Link for 1/2″ Chain $4.25
096-Tower Support Bracket $124.75
100-Bolt for Yellow Unit $0.75
101-Cable for Sensor $36.50
102-Cable Fastener (Blue) $7.25
105-Spacer for Electronic Box $7.25
107-Wrench for Bucket Bearing $13.50
154-Mounting Frame for Wintex Unit $272.50
155-Mounting L Bracket $13.50

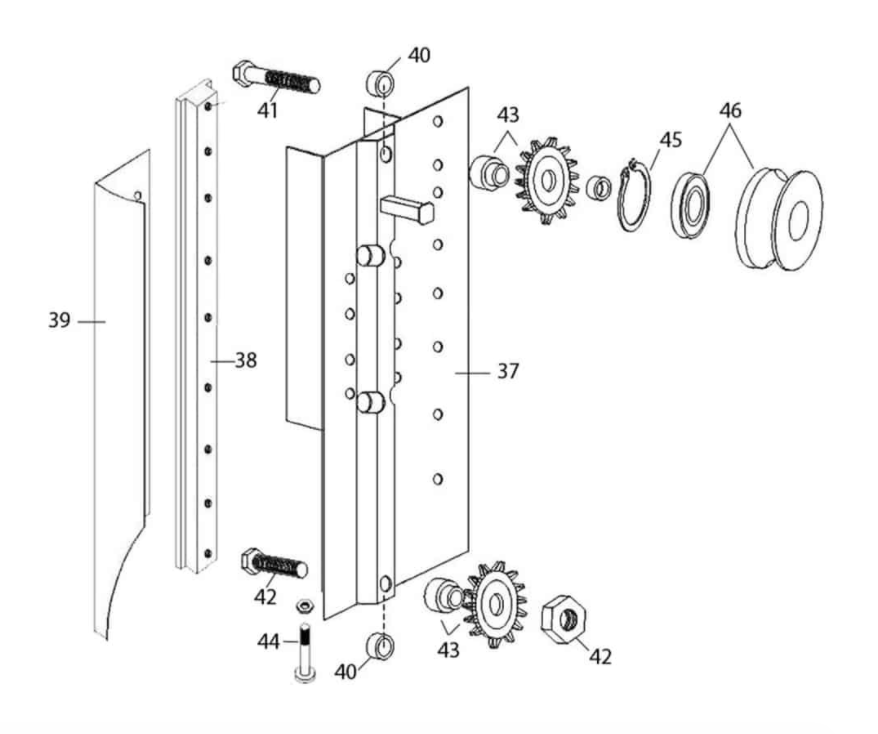

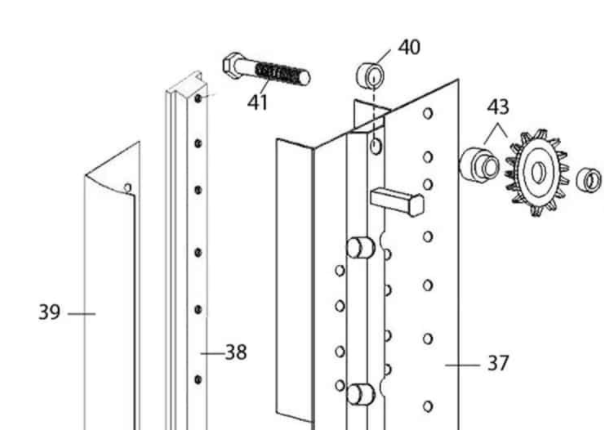

Wintex 1000 – Mounting Plate
037-Mounting Plate $223.50
038-Drilling Head Rail (Short) $123.75
039-Slide for Soil Box $47.75
040-Spacer for Mounting Plate $3.00
041Bolt for Mounting Plate (16x70mm) $4.25
042-Bolt for Mounting Plate (16x55mm) $3.00
043-Sprocket Wheel with Bearing $38.50
044-Bolt and Nut for Stop on Black Mount (8x35mm) $0.50
045-Snap Ring for Cable Wheel $2.00
046-Cable Guide with Bearing $46.75
